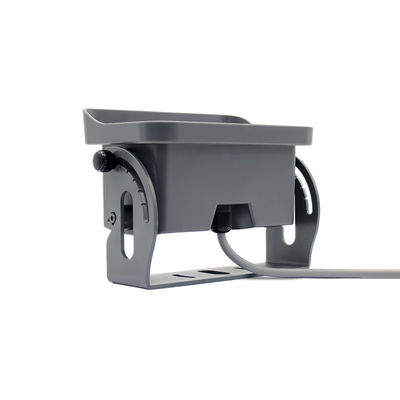

Motion Sensor with Forklift Direction Recognition for Warehouse Automatic Doors
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | JUTAI |
| प्रमाणन | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| मॉडल संख्या | RVP42-7M |
| न्यूनतम आदेश मात्रा | 1 |
| मूल्य | negotiable |
| पैकेजिंग विवरण | कार्टून |
| प्रसव के समय | 5-8 दिन |
| भुगतान शर्तें | टी/टी, एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन, पेपैल, मनीग्राम, एलीपाय |
| आपूर्ति की क्षमता | प्रति माह 1000 टुकड़े |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| उत्पादन का प्रकार | 1 रिले आउटपुट। | बिजली की आपूर्ति | 12-24VADC |
|---|---|---|---|
| एंटीना आवृत्ति | 24.125GHz | पता लगाना ऊंचाई | 3 मीटर से 7 मी |
| पैकेज आकार | 28.00 सेमी * 13.00 सेमी * 10.00 सेमी | समारोह | फोर्कलिफ्ट लोग भेद करते हैं |
| जलरोधक | IP65 | कार्य -तापमान | -30 ~ 70 ℃ |
| सेटिंग | ब्लूटूथ ऐप | ||
| प्रमुखता देना | industrial motion sensor for forklifts,warehouse door motion detector,automatic door sensor with direction recognition |
||
उत्पाद विवरण
JUTAI RVP42 Series Industrial Motion Detection System
Product Technical Profile
|
Category |
Specifications |
|---|---|
| Core Technology | 24.125GHz Doppler Radar with Digital Signal Processing |
| Detection Capabilities | Simultaneous vehicle and pedestrian recognition with 95% accuracy |
| Speed Range | 0.05m/s to 25m/s (5cm/s to 90km/h) adjustable detection |
| Environmental Rating | IP65 protection against dust and water ingress |
| Temperature Range | Operational from -30°C to +60°C (-22°F to 140°F) |
| Power Requirements | 12-36V DC with <100mA current draw |
| Relay Outputs | Dual independent relays (30VDC/1A + 125VAC/0.5A) |
| Installation Flexibility | 2.0m to 9.0m mounting height adjustment with 0°-90° angle positioning |
| Detection Area | 3.0×3.5m (minimum) to 6.5×8.5m (maximum) coverage area |
| Response Time | <50ms trigger response with 0.2-5.0s adjustable hold time |
| Physical Dimensions | 164×111×94.5mm compact housing |
| Certifications | CE, RoHS compliant with industrial EMC standards |
Advanced Functional Matrix
|
Feature |
Configuration Options |
|---|---|
| Detection Mode Selection | Standard/Medium/High speed presets + Custom sensitivity (9 levels) |
| Direction Recognition | Forward/Backward/Bidirectional movement detection |
| Output Logic Programming | Independent or combined relay activation patterns |
| Interference Rejection | 3-stage adjustable filtering for metal/plant/light interference |
| Installation Presets | 7 height profiles (2.0-9.0m) with automatic area calibration |
| Maintenance Alerts | Self-diagnostic system with LED status indicators |
| System Integration | RS485 MODBUS RTU protocol support for building automation systems |
Performance Comparison Table
|
Parameter |
JUTAI RVP42 |
Standard PIR Sensor |
Ultrasonic Sensor |
|---|---|---|---|
| Detection Accuracy | 95% (vehicles/pedestrians) | 60-70% (heat-based) | 75-85% (distance-based) |
| Environmental Resistance | IP65 (-30°C to +60°C) | IP54 (0°C to 50°C) | IP55 (-10°C to 55°C) |
| Response Speed | <50ms | 200-500ms | 100-300ms |
| False Trigger Rate | <1% | 5-15% | 3-8% |
| Installation Flexibility | 2-9m height adjustable | Fixed height limitations | Limited height range |
| Maintenance Requirements | 10-year operational life | Annual recalibration | Quarterly cleaning needed |
Application Deployment Guide
|
Industry Sector |
Recommended Model |
Optimal Configuration |
Performance Benefit |
|---|---|---|---|
| Logistics Warehouses | RVP42-9MG Enhanced | High-speed vehicle preset | 99% forklift detection accuracy |
| Cold Storage Facilities | RVP42-9ME Standard | Low-temperature stabilization mode | Reliable -30°C operation |
| Smart Parking Systems | RVP42-9MG Enhanced | Directional movement analysis | Precise vehicle counting |
| Manufacturing Plants | RVP42-9ME Standard | Metal interference rejection | Stable operation near machinery |
| Public Transportation | RVP42-9MG Enhanced | High-density pedestrian filtering | Accurate passenger flow monitoring |
Technical Support Framework
|
Service Tier |
Response Time |
Included Support |
Optional Enhancements |
|---|---|---|---|
| Basic Support | 48-hour email response | Online documentation | Extended warranty packages |
| Professional Support | 24-hour technical hotline | Remote diagnostics | On-site commissioning |
| Premium Support | 4-hour emergency response | Dedicated account manager | Custom firmware development |
| Enterprise Solutions | 24/7 monitoring | System integration consulting | Tailored training programs |
Ordering Information Matrix
|
Package Option |
RVP42-9ME Standard |
RVP42-9MG Enhanced |
Enterprise Custom |
|---|---|---|---|
| Core Components | Sensor unit + 7m cable | Sensor unit + 10m shielded cable | Configurable to application needs |
| Mounting Hardware | Basic bracket set | Vibration-dampening mount | Explosion-proof enclosure option |
| Documentation | Quick start guide | Full technical manual + CAD drawings | Custom integration guidelines |
| Warranty Coverage | 2 years standard | 3 years extended | 5 years comprehensive |
| Regulatory Compliance | CE, RoHS | CE, RoHS, UL | ATEX, IECEx for hazardous areas |
Performance Optimization Table
|
Installation Scenario |
Recommended Settings |
Expected Outcome |
Maintenance Tips |
|---|---|---|---|
| High Traffic Loading Docks | Mode 7 (High-speed vehicles) | 98% detection rate for forklifts | Quarterly lens inspection |
| Pedestrian Access Gates | Mode 5 (Standard different.) | 94% pedestrian recognition | Monthly sensitivity verification |
| Outdoor Toll Lanes | Mode 8 (All-weather) | 96% vehicle counting accuracy | Bi-annual weatherproofing check |
| Freezer Warehouse Doors | Cold Chain Preset | Reliable -25°C operation | Annual low-temperature calibration |
| Automated Parking Garages | Directional Mode 3 | Precise entry/exit differentiation | Semi-annual alignment check |

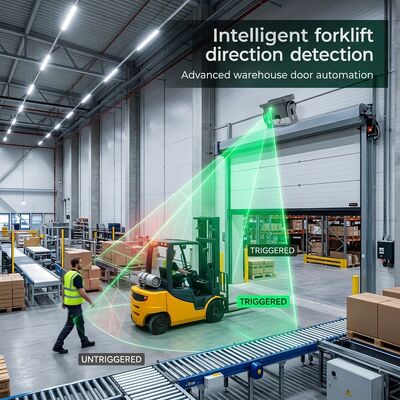

Direction Recognition
