Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances

उत्पत्ति के प्लेस	चीन
ब्रांड नाम	JUTAI
प्रमाणन	CE
मॉडल संख्या	CL20-8L
न्यूनतम आदेश मात्रा	1
मूल्य	negotiable
पैकेजिंग विवरण	कार्टून
प्रसव के समय	5 - 8 कार्य दिवस
भुगतान शर्तें	टी/टी, एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन, पेपैल, मनीग्राम, एलीपाय
आपूर्ति की क्षमता	प्रति माह 1000 टुकड़े

निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

वीचैट: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

उत्पाद विवरण

आईपी रेटिंग	IP67	समारोह	रिक्त
संवेदन दूरी	8	सामग्री	एल्यूमीनियम मिश्र धातु
विशेषता	जंग रोधी	बिजली वोल्टेज	DC12-24V
परिचालन तापमान	-20 ~ 60 ℃	संचालन करंट	<50mA
उत्पादन	नहीं/एनसी, COM	काम कर रहा है	<20mA@डीसी12V
विनिर्देश	20002115 मिमी
प्रमुखता देना	Safety light curtain for industrial doors , IP67 light curtain sensor , Light curtain for elevator entrances

एक संदेश छोड़ें

उत्पाद विवरण

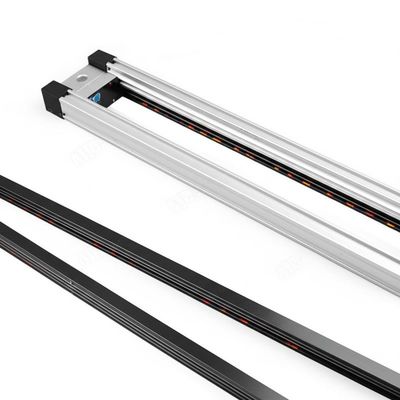

Safety Light Curtain Sensor -25℃~75℃ for Rolling Industrial Doors Elevator Entrances 0

Shenzhen JUTAI IP67 Waterproof Safety Light Curtain Sensor: The Ultimate Safety Guardian for Industrial Operations

Shenzhen JUTAI Communication Co., Ltd. proudly presents its IP67 Waterproof Safety Light Curtain Sensor—a rugged, high-performance safety device engineered to perform exceptionally in demanding industrial environments where dust, moisture, and extreme temperatures are everyday challenges. Equipped with top-grade IP67 waterproof and dustproof certification, this sensor ensures non-stop reliability across a wide range of scenarios: from busy manufacturing facilities and high-volume warehouses to sub-zero cold storage units and fast-paced automated production lines. It has become an irreplaceable safeguard for modern industrial safety management systems.

10 Tailored Models to Meet Diverse Industrial Requirements

To address the varied safety needs of different industrial sites, we have developed 10 unique models, each with adjustable beam counts and lengths to perfectly match specific application demands. Below is a detailed overview of the key specifications for each model:

Model	Length	Beam Quantity	Detection Range
CL05 - 4L	500mm	4 beams	Up to 8 meters*
CL05 - 8L	500mm	8 beams	Up to 8 meters*
CL10 - 8L	1000mm	8 beams	Up to 8 meters*
CL10 - 16L	1000mm	16 beams	Up to 8 meters*
CL15 - 8L	1500mm	8 beams	Up to 8 meters*
CL15 - 16L	1500mm	16 beams	Up to 8 meters*
CL20 - 8L	2000mm	8 beams	Up to 8 meters*
CL20 - 16L	2000mm	16 beams	Up to 8 meters*
CL25 - 8L	2500mm	8 beams	Up to 8 meters*
CL25 - 16L	2500mm	16 beams	Up to 8 meters*

Note: The actual detection range may be impacted by environmental factors (such as dust and humidity) and the number of beams.

Key Advantages That Make It Stand Out in the Market

IP67 Protection & Durable Heavy-Duty Build

This sensor is enclosed in a fully sealed, high-strength aluminum alloy casing, which effectively repels water jets and prevents dust intrusion—making it ideal for wet or dusty environments like food processing plants. It maintains stable performance even in extreme temperature ranges, from as low as -25°C (perfect for cold storage applications) to as high as +75°C, and can adapt to both indoor and outdoor harsh conditions.

Dual Operational Modes for Maximum Versatility

Blanking Mode: Specifically designed for door gap installations. During the door-closing process, it monitors each beam independently; if an obstacle blocks any beam, the door reverses instantly to prevent damage or injury.
Normal Mode: When mounted on the sides of the door, any interruption to the light beams triggers an immediate door-opening signal, ensuring maximum safety for workers and equipment.

High-Precision Detection & Ultra-Fast Response

With a 100mm beam spacing, this sensor can accurately detect small obstacles, significantly reducing the risk of accidents in busy industrial areas. Its ultra-fast response time (≤20ms) allows it to keep up with high-speed workflows, a critical feature for automated production lines and fast-moving machinery.

Energy Efficiency & Flexible Customization

With a power consumption of only ≤4W, this sensor helps businesses cut down on long-term operational costs. Additionally, you can select between 4 and 16 beams to match the exact detection area needs of your industrial setup, avoiding unnecessary resource waste.

Comprehensive Technical Specifications

Parameter	Details
Product Type	Safety Light Curtain Sensor
Waterproof & Dustproof Rating	IP67 (fully dustproof and waterproof; suitable for moist and harsh environments)
Working Voltage	24V DC ± 10%
Power Consumption	≤ 4W
Response Time	≤ 20 ms
Beam Count (e.g., CL10-8L)	8 beams
Detection Range	Up to 8 meters (influenced by environmental conditions and beam quantity)
Beam Spacing	100mm
Operating Temperature	-25°C to +75°C
Relative Humidity	95% (non-condensing)
Housing Material	High-impact aluminum alloy
Output Type	NPN or PNP (optional, based on customer requirements)
Detection Principle	Light-based (triggers a response when an obstacle blocks the light beams)
Mounting	Adjustable bracket (easy to install and align for precise positioning)
Safety Certification	CE Certified (Certificate No.: CTC142H1007801SC)

Key Applications & Practical Benefits for Industrial Use

Industrial Door Safety Applications

Rolling Doors: Widely used in warehouses and factories for quick access. It detects obstructions during the door-closing process and reopens the door to avoid collisions with goods or workers.
Sectional Doors: Protects vertically opening doors (used for heavy machinery entry) by detecting people or objects in the door’s path, preventing crushing hazards.
High-Speed Doors: Ideal for cold storage facilities, pharmaceutical plants, and food processing factories. If the light beams are blocked while the door is closing, it stops and reopens the door, maintaining temperature control and ensuring safety.
Foldable Doors: Prevents injuries caused by fast-moving foldable doors in high-traffic, space-constrained areas (such as narrow factory corridors).
Automatic Sliding Doors: Detects obstacles or people in the door’s path and halts the door’s movement, avoiding collisions in industrial or commercial spaces.
Fire Doors: Ensures safe and unobstructed closing of fire doors in industrial sites by detecting barriers, protecting both personnel and vehicles during emergencies.
Cold Storage Doors: Operates reliably at -25°C, unaffected by moisture, condensation, or fog—playing a vital role in maintaining cold chain integrity and safety.

Other Industrial Safety Scenarios

Material Handling (Conveyors): Prevents collisions between workers, machinery, and moving conveyor parts, reducing workplace accidents.
Robotic Arms: Immediately stops fast-moving robotic arms when a person or object crosses the light beam, protecting workers from harm.
Automated Guided Vehicles (AGVs): Enables safe navigation of AGVs in dynamic warehouses and factories, avoiding obstacles and pedestrians.
Packaging Equipment: Stops high-speed packaging machines when obstructions are detected, protecting operators and preventing equipment damage.

Why Partner with Shenzhen JUTAI Comm Co., Ltd.?

Over 10 Years of Industrial Sensor Expertise: As a leading company in the sensor industry, we specialize in developing robust, efficient, and cost-effective safety solutions tailored to industrial needs.
Customized Support Services: We provide free on-site evaluations to assess your unique safety requirements and offer custom product solutions for specific scenarios.
24/7 Dedicated Customer Service: Our professional team is available around the clock to resolve technical issues, provide installation guidance, and address your inquiries promptly.

Contact Us Today for Industrial Safety Solutions

Official Website: www.accesssecuritysolution.com
Email: jutaisales18@gmail.com
WhatsApp: +86 191 6627 1852

Safeguard your industrial operations with Shenzhen JUTAI’s IP67 Waterproof Safety Light Curtain Sensor—your trusted partner for long-term safety and operational efficiency.
