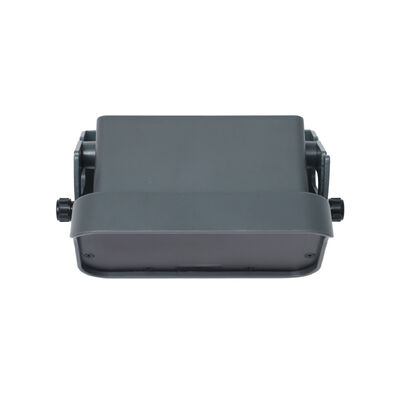

RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
| उत्पत्ति के प्लेस | चीन |
|---|---|
| ब्रांड नाम | JUTAI |
| प्रमाणन | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| मॉडल संख्या | RVP42-7M |
| न्यूनतम आदेश मात्रा | 1 |
| मूल्य | negotiable |
| पैकेजिंग विवरण | कार्टून |
| प्रसव के समय | 5-8 दिन |
| भुगतान शर्तें | टी/टी, एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन, पेपैल, मनीग्राम, एलीपाय |
| आपूर्ति की क्षमता | कागज बॉक्स |
उत्पाद विवरण
| रडार सिद्धांत | 24.125GHz प्लानर डॉपलर रडार | वाहन पहचान | 95% उच्च सटीकता |
|---|---|---|---|
| बिजली की आपूर्ति | 12-36वी डीसी, <100एमए | संरक्षण ग्रेड | IP65 डस्टप्रूफ और वॉटरप्रूफ |
| कार्यशील तापमान | -30℃ ~ +60℃ | पर्वत की ऊँचाई | 2 मी ~ 7 मी समायोज्य |
| असर मोड | <50 एमएस अल्ट्रा-फास्ट | आउटपुट मोड | रिले शुष्क संपर्क |
| अंतर-अंतर्ग्रहण | मल्टी-स्टेज एडजस्टेबल फ़िल्टर | पार्किंग समारोह | अंदर/बाहर दिशा की पहचान |
| प्रमुखता देना | vehicle detection radar sensor,smart parking barrier gate radar,industrial door motion sensor |
||
उत्पाद विवरण
RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
Product Summary
The RVP42-7M is a high-performance 24GHz Doppler radar sensor designed specifically for smart parking barrier gate systems. Using advanced planar radar technology and digital signal processing, it delivers precise vehicle detection, direction recognition, and reliable access control even in challenging outdoor environments. With ultra-low false alarm rates, rapid response time, and robust construction, the RVP42-7M ensures smooth traffic flow, enhanced security, and reduced maintenance costs for modern parking facilities.
Key Benefits for Parking Applications
-
Accurate Vehicle Detection – Identifies cars, vans, and light trucks approaching or leaving the gate with 95% accuracy.
-
Direction Awareness – Distinguishes between inbound and outbound vehicles to trigger barrier arms intelligently.
-
Reduced False Triggers – Filters out pedestrians, bicycles, and lateral movements to avoid unnecessary gate activation.
-
Fast & Consistent Performance – Response time under 50ms guarantees seamless entry/exit without delays.
-
Harsh Environment Ready – Operates reliably from -30°C to +60°C with IP65 protection against rain, dust, and vibration.
-
Easy Integration – Configurable relay output (NO/NC), adjustable sensitivity, and flexible mounting heights simplify installation with existing barrier controllers.
Technical Specifications Table
|
Parameter |
Specification |
|---|---|
| Frequency Band | 24.125 GHz Doppler Radar |
| Radar Type | Planar Module |
| Transmit Power | <20 dBm |
| Power Supply | 12–36V DC |
| Operating Current | <100 mA |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Mounting Height | 2 m – 7 m |
| Maximum Detection Speed | 25 km/h (vehicles) |
| Response Time | <50 ms |
| Relay Output | 1 channel, NO/NC configurable |
| Relay Load Capacity | Max 125V AC 1A / 60V DC 1A |
| Cable Length | 7 m (pre-wired) |
| Protection Rating | IP65 |
| Housing Material | Anodized Aluminum + Polycarbonate |
| Dimensions | 164 mm × 111 mm × 94.5 mm |
| Weight | 630 g |
| Sensitivity Levels | 5 steps (Low → High) |
| Relay Hold Time Options | 0.2 s / 0.5 s / 1.0 s / 2.0 s / 5.0 s / Continuous / Off |
| Lateral Motion Filter | 4 levels (Off / Low / Medium / High) |
| Anti-EMI Mode | 2 levels (Off / On) |
| Certifications | CE, RoHS, FCC, ISO Compliant |

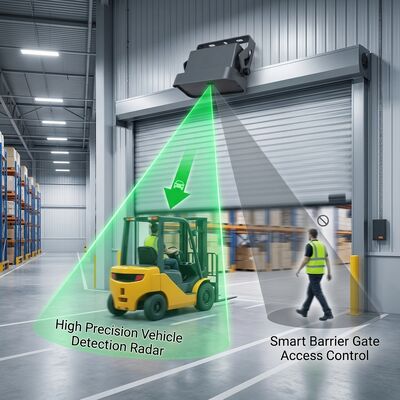

Functional Highlights for Barrier Gate Systems
-
Vehicle-Only Activation – Prevents pedestrian or stray object triggering, ensuring gates open only for authorized vehicles.
-
Bidirectional Traffic Handling – Recognizes vehicle direction for optimized automation and queue management.
-
Flexible Timing Settings – Adjust relay hold time to match barrier arm speed and safety requirements.
-
Electromagnetic Noise Immunity – Ideal for parking lots with LED lighting, EV chargers, or nearby motors.
-
Quick Deployment – Includes mounting bracket, 7m cable, and intuitive LED indicators for straightforward installation and diagnostics.
Why Choose RVP42-7M Over Conventional Detectors
|
Feature |
RVP42-7M Radar Sensor |
Loop Detector |
Passive Infrared (PIR) Sensor |
|---|---|---|---|
| Detection Accuracy | 95% | ~85% (metal dependent) | ~60–70% (heat signature) |
| False Alarm Rate | <1% | 3–10% | 5–15% |
| Response Speed | <50 ms | ~100 ms | 200–500 ms |
| Weather Resistance | IP65; -30°C to +60°C | Requires pavement work | Limited outdoor durability |
| Installation Complexity | Easy surface mount | Requires cutting slots | Moderate |
| Maintenance Requirement | Minimal | Periodic coil inspection | Frequent calibration needed |
Typical Parking Lot Applications
-
Automated entry/exit barrier gates
-
Vehicle counting & access verification
-
Toll booth lanes & VIP lane management
-
Gated residential communities & commercial complexes
-
Airport/train station parking zones
Installation Tips
-
Mount sensor at 2–7 meters height facing the vehicle approach path.
-
Ensure no large metal objects obstruct the radar beam.
-
Enable lateral motion filter to ignore crossing pedestrians or bicycles.
-
Use anti-interference mode if surrounded by LED signs or EV charging stations.
-
Align sensitivity level according to traffic density and vehicle mix.
Package Contents & Support
-
RVP42-7M sensor unit
-
Mounting bracket and hardware
-
7-meter pre-wired cable
-
User manual
-
Optional: OEM/ODM branding and custom firmware
-
Warranty: 2 years standard (3 years extendable)
-
Support: 24-hour hotline, 48-hour email response, remote configuration assistance
Direction Recognition
